OL DAC


This product has been discontinued. You might be interested in Atom DAC+.

Atom DAC+

$109.00

  • Covered by our 2-year transferable warranty

FANTASTIC VALUE

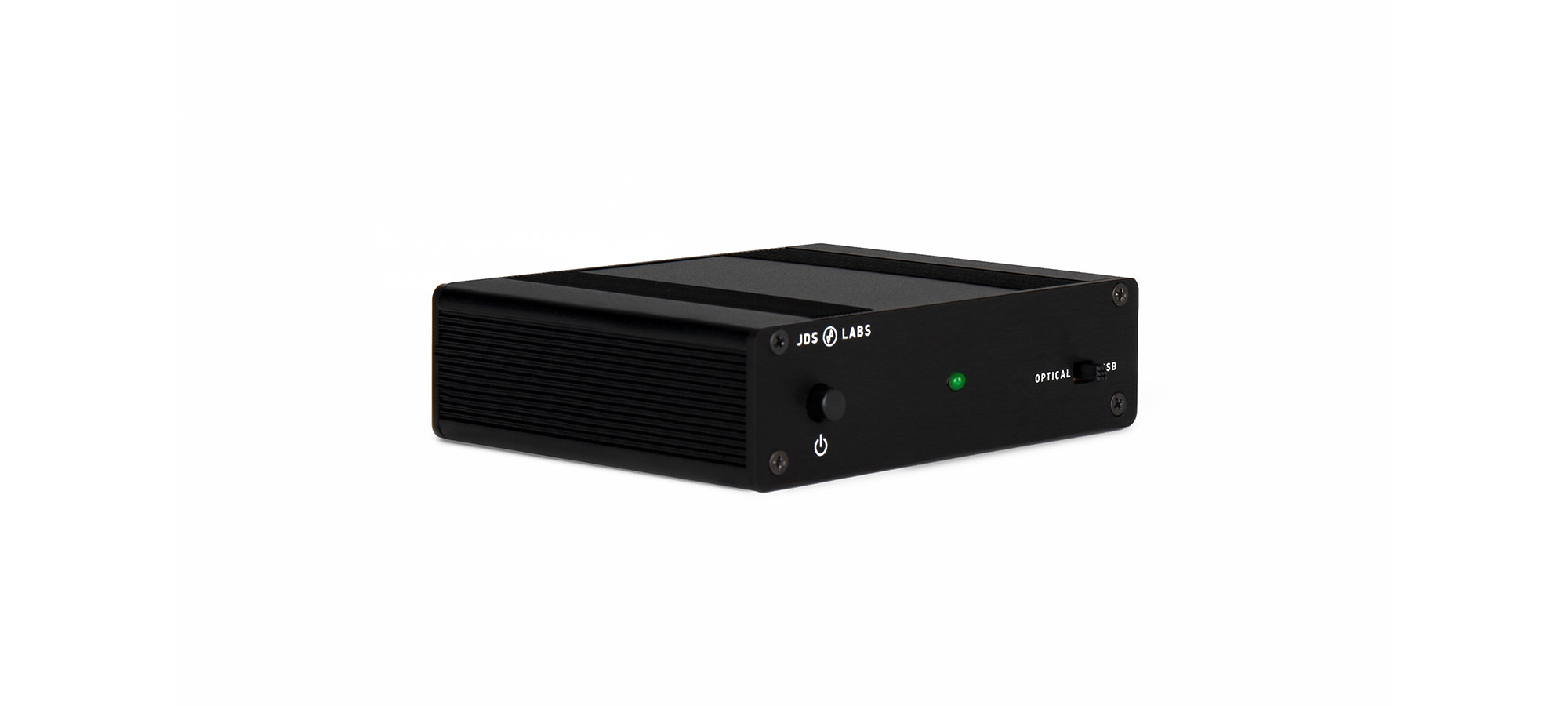

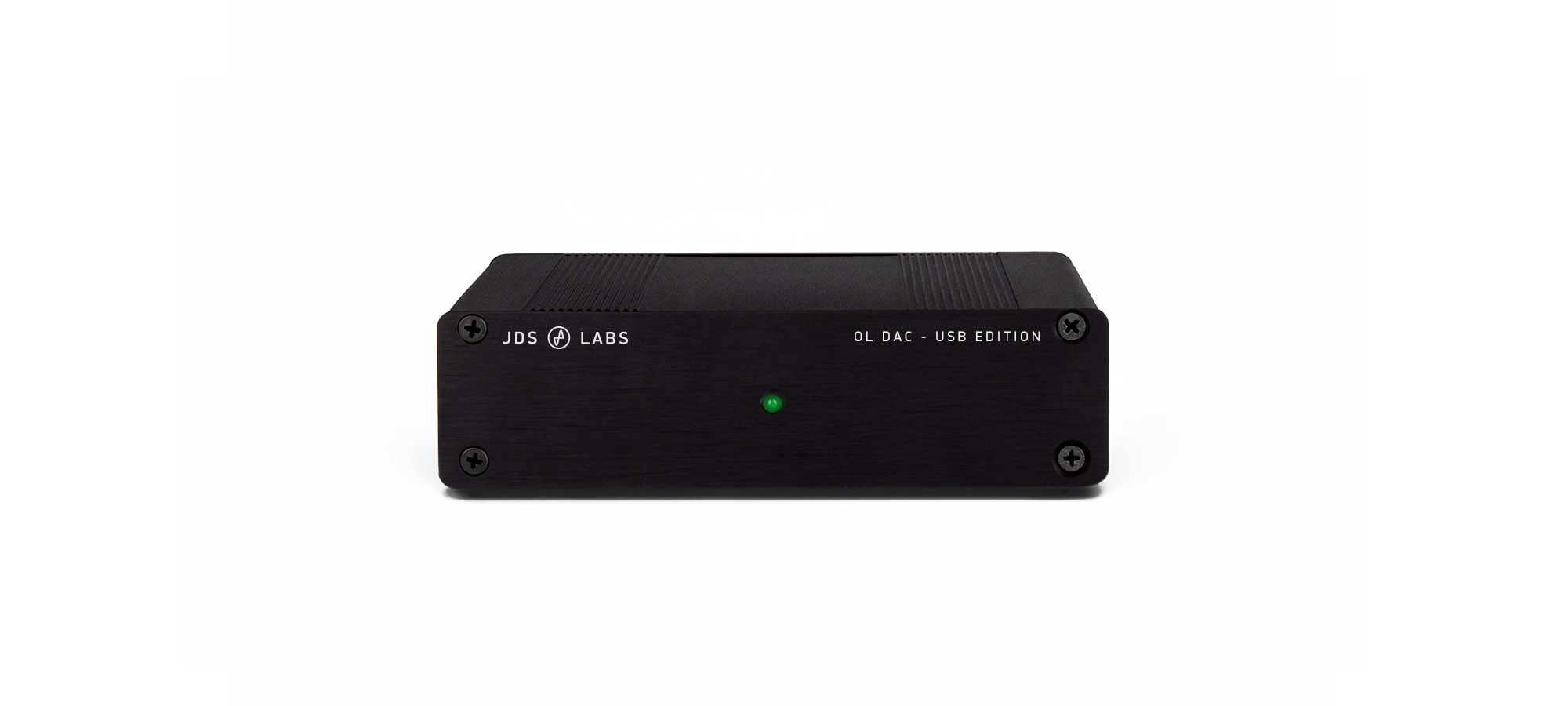

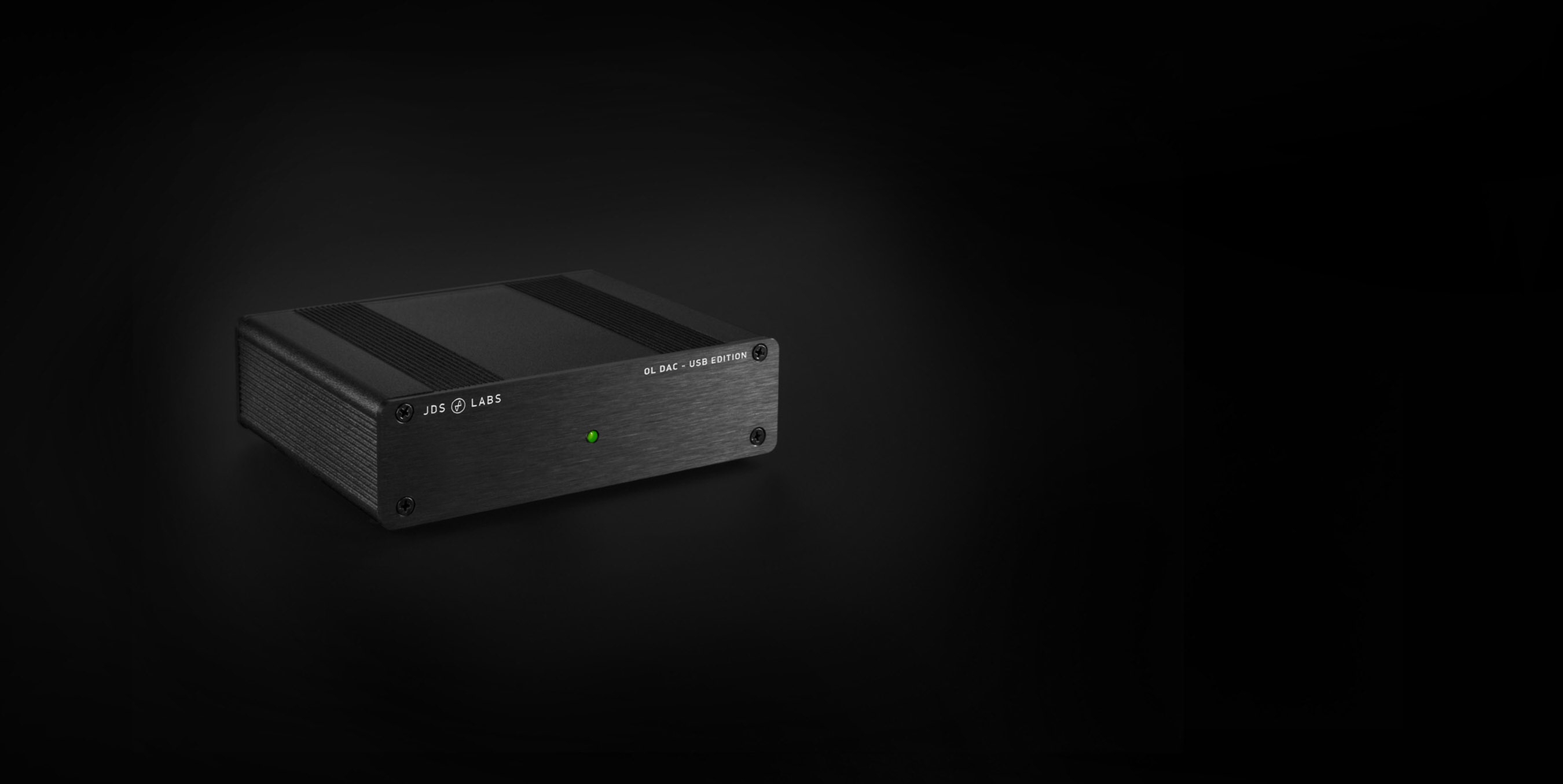

We decided to set the highest bar with OL DAC, by far outperforming ODAC and eclipsing the sea of alternatives beyond just benchmarks. OL DAC's external AC power supply ensures 100% consistent noise performance and its relay muting eliminates power-up transients; while the minimalist USB Edition relies on the same external AC powered design minus relay muting and optical input.

Features

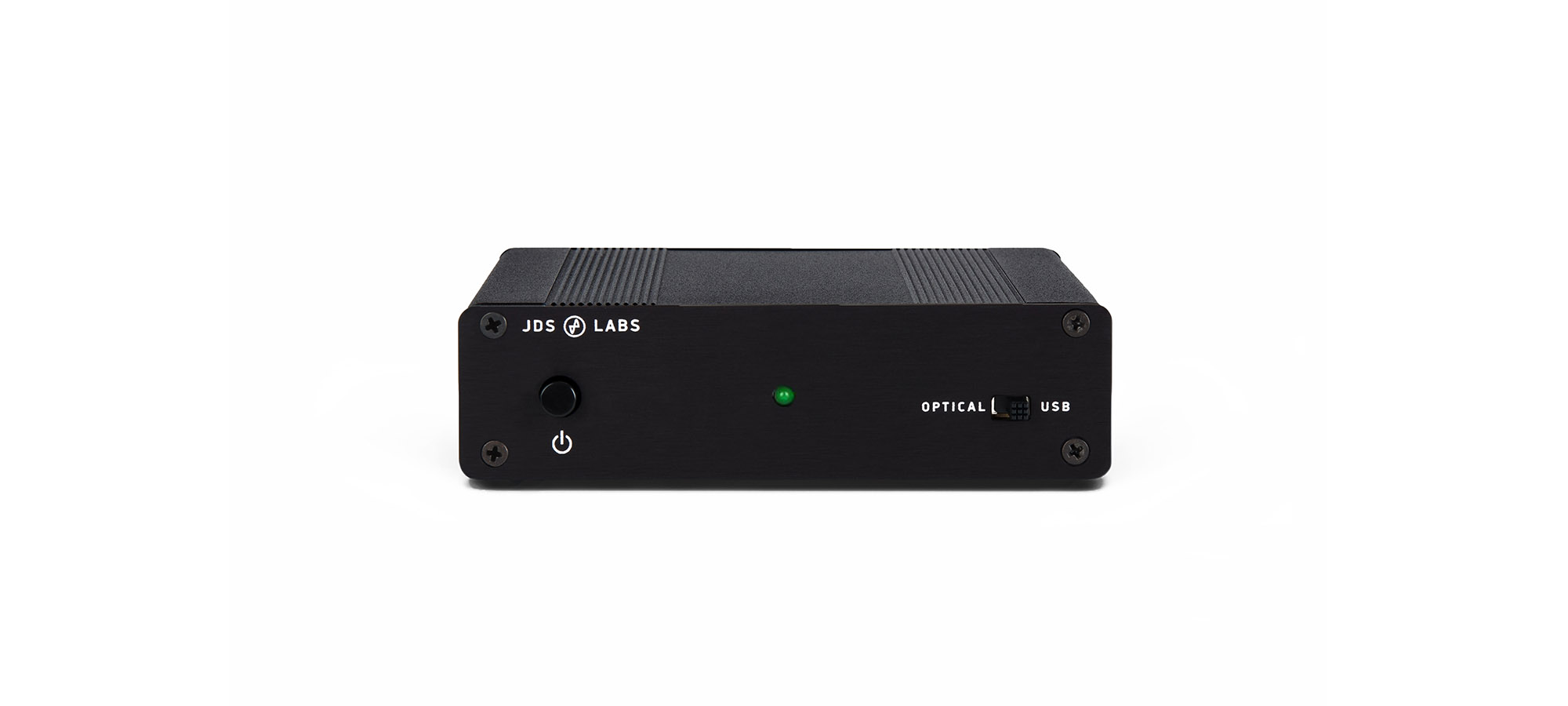

OPTICAL AND USB INPUTS

DIFFERENTIAL SUMMING OUTPUT

EXTERNALLY POWERED

Specifications

DAC Performance

  • Frequency Response 10Hz-20kHz (96k) +/- 0.15dB
  • THD+N 20Hz-20kHz < 0.001%
  • IMD CCIF 19/20 kHz -6.03 dBFS 0.00033%
  • IMD SMPTE -6.03 dBFS 0.00031%
  • Noise (A-Weighted) -109 dBu
  • Dynamic Range (A-Weighted) 114 dB
  • Linearity Error -90 dBFS +/-0.01 dB
  • Crosstalk -10 dBFS 100K RCA -108 dB
  • USB Jitter Components 11025Hz -116 dB

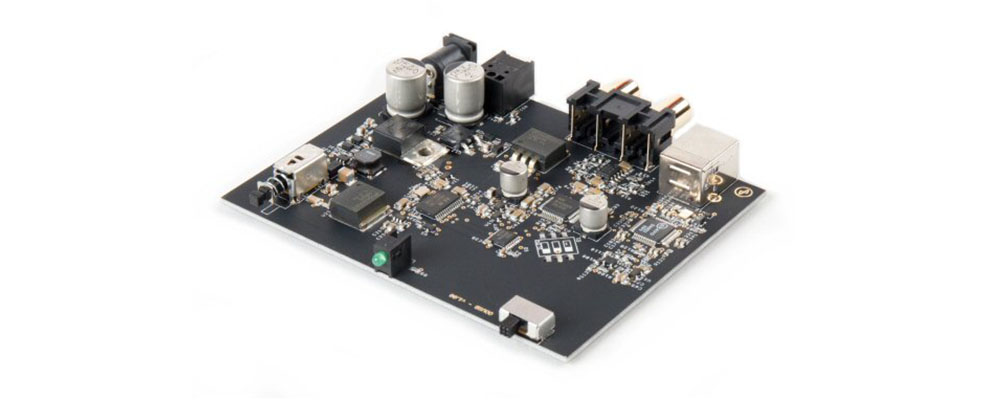

  • PCB Stackup 4 Layers
  • Maximum DAC Line-Output, 100K 2.00 VRMS

Dimensions

  • Case Dimensions 4.27 x 3.15 x 1.16 in
  • Weight 13 oz

Data Support

  • Audio Formats (Optical) 16/44.1kHz thru 24/192kHz**
  • Audio Formats (USB) 16/44.1kHz thru 24/96kHz
  • USB Interface USB Audio Class 1 (UAC1)
  • USB Driver OS Support Windows XP/7/8/10, PS4, OS X, iOS, Linux

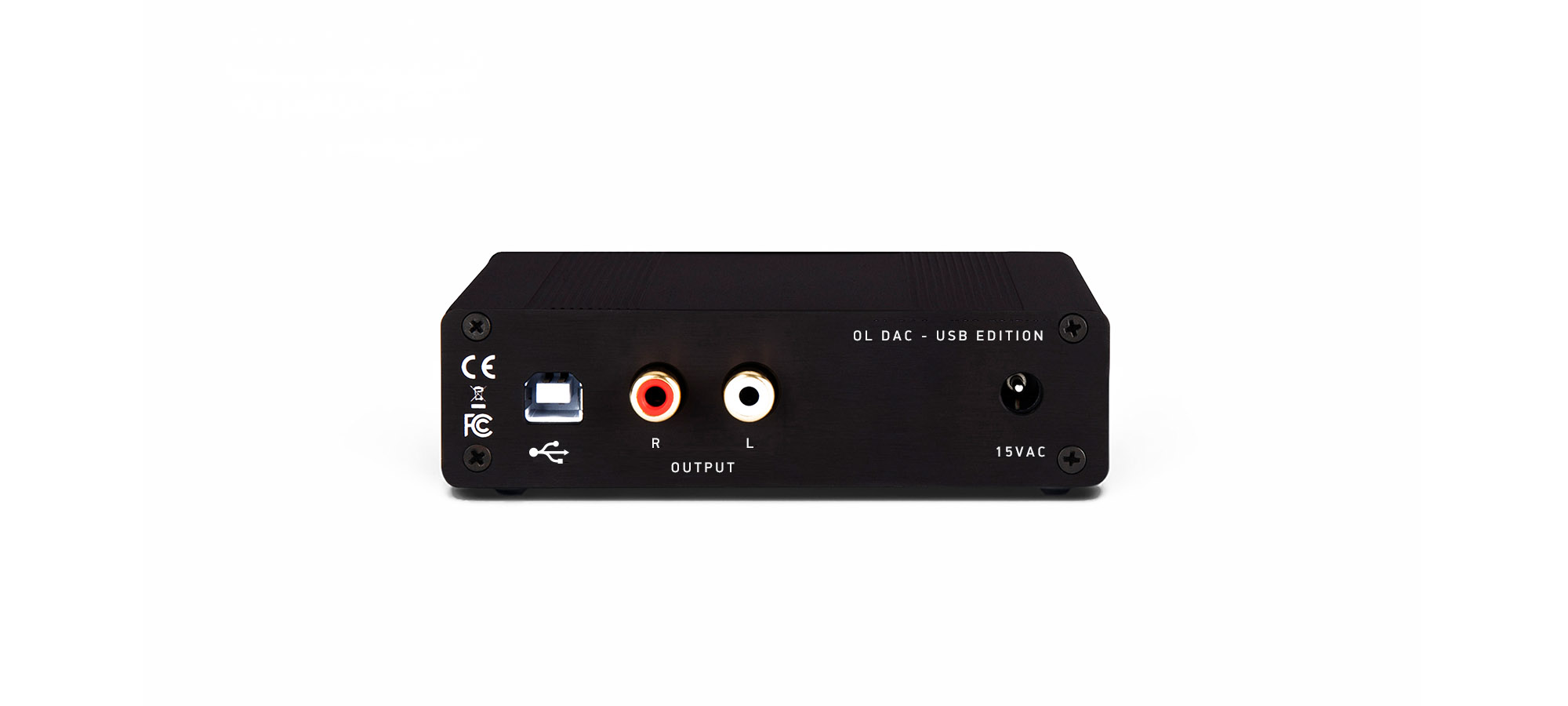

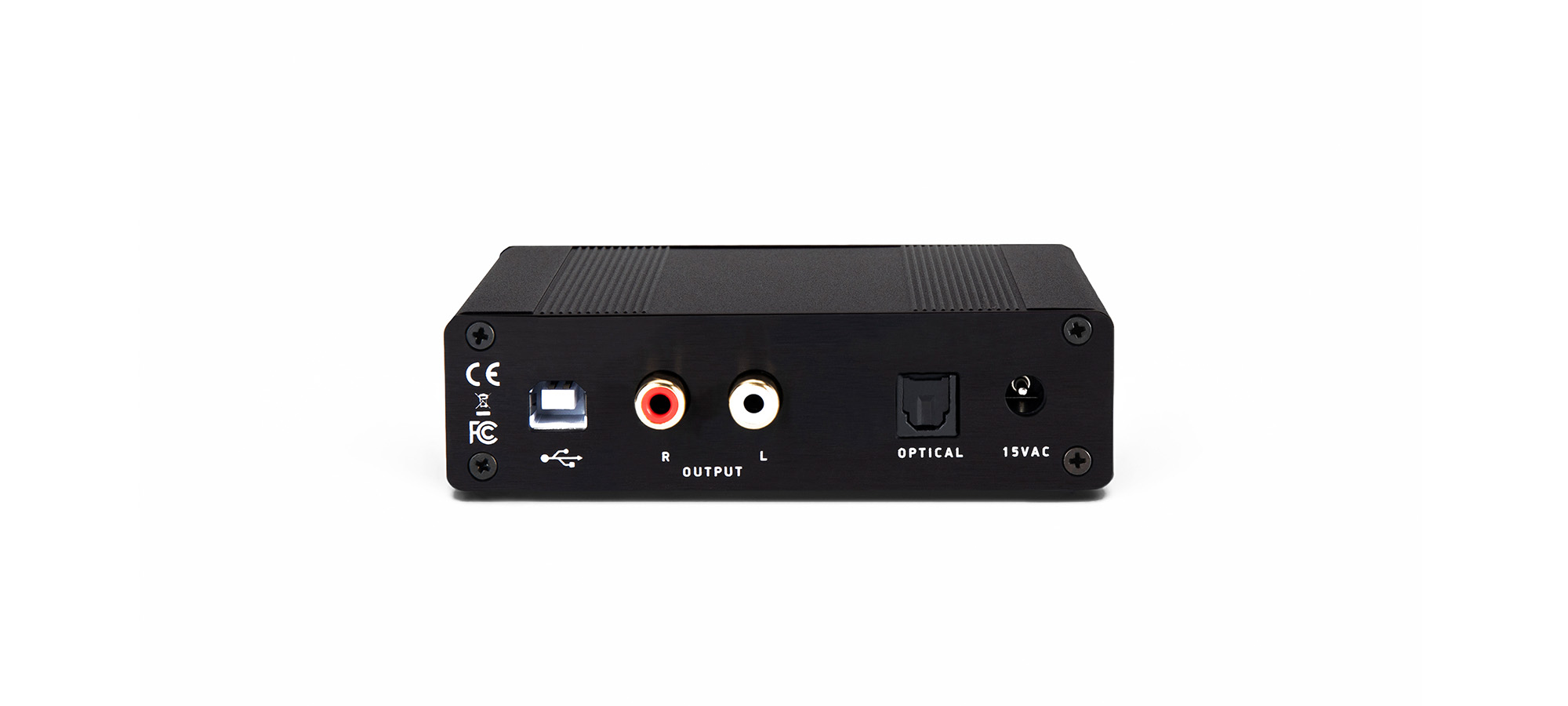

Connectivity

  • Digital Inputs USB and TOSLINK*
  • DAC Line-Output RCA

Packaged Items

  • OL DAC v1.10
  • 15VAC Power Adapter
  • 3ft USB Type-B Cable
