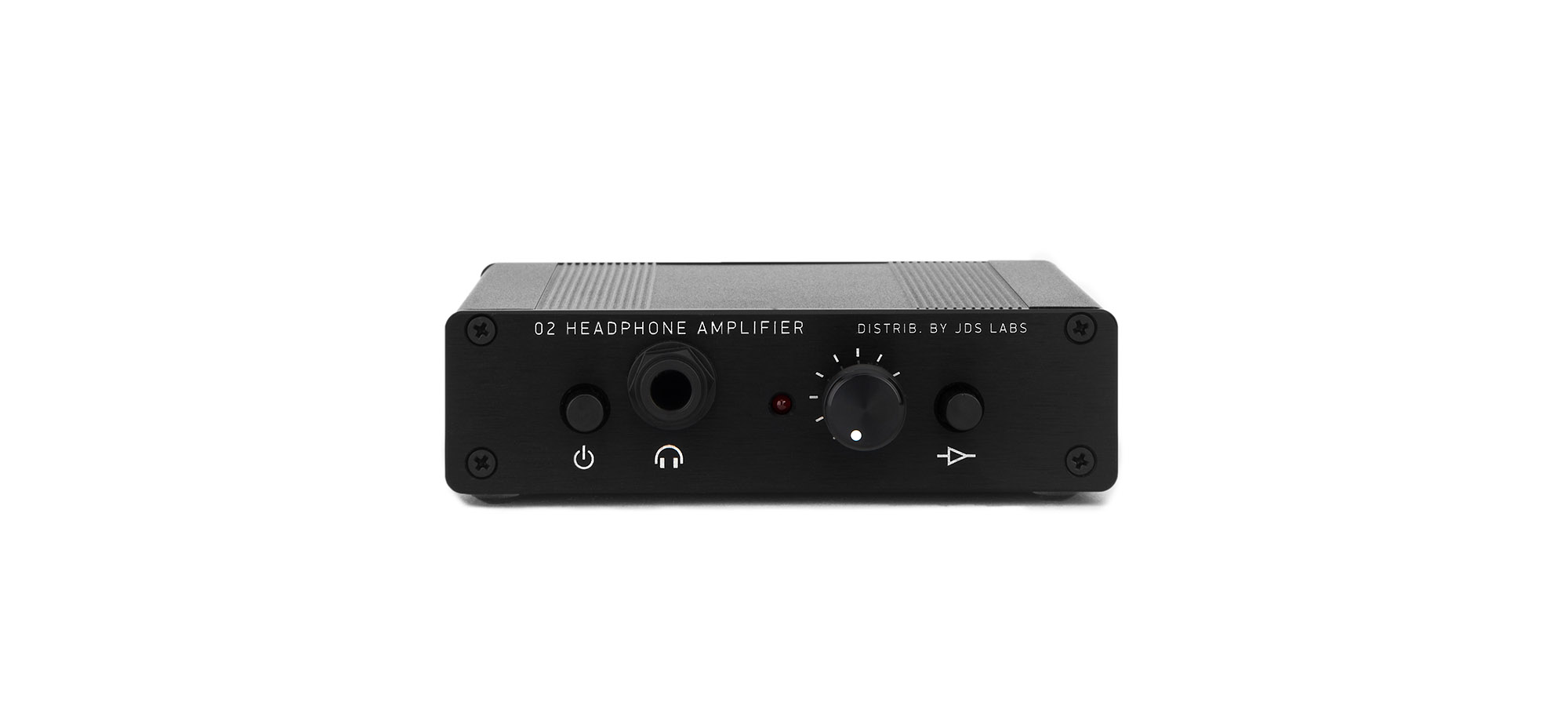

Objective2 Headphone Amplifier

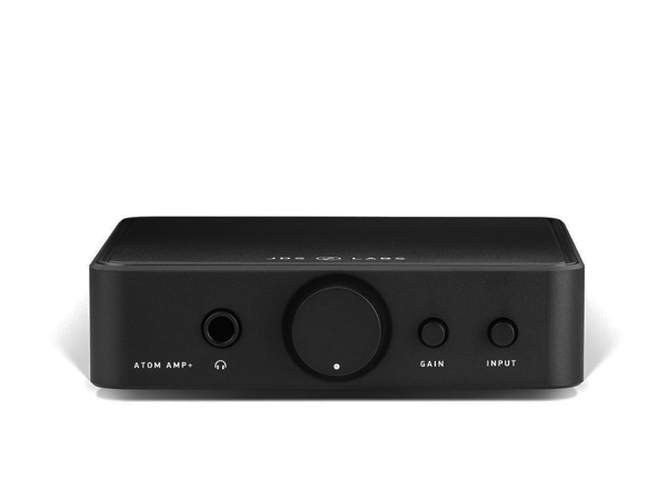

This product has been discontinued. You might be interested in Atom Amp+.

Atom Amp+

$99.00

  • Covered by our 2-year transferable warranty
  • Custom model pictured, please read all options!

REFERENCE GRADE AMPLIFICATION

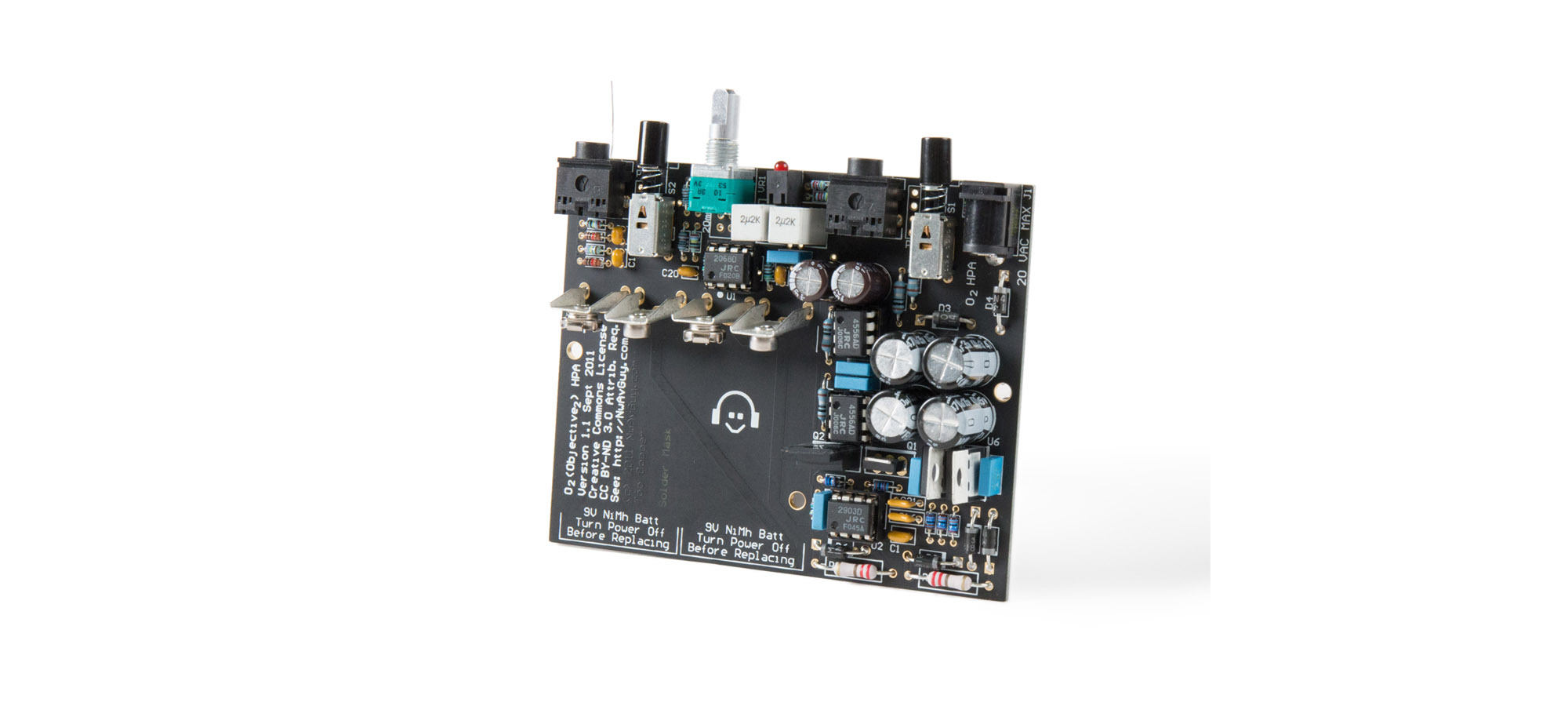

Objective2 is an opensource amplifier designed by brilliant engineer NwAvGuy, with emphasis on benchmark performance and low cost. Objective2 arrives fully assembled, hand tested, and ready to enjoy. Made in the USA.

Features

REFERENCE GRADE SOUND

LOW OUTPUT IMPEDANCE

POWER

Specifications

Performance

  • Frequency Response +/-0.1 dB (20Hz-20kHz)
  • THD 1 Khz 150 Ohms 0.0016%
  • IMD CCIF 15 Ohms 0.001%
  • IMD SMPTE 0.002%
  • Noise (ref 400 mV) -105 dB
  • Max Output (33 Ohms) 613 mW
  • Max Output (150 Ohms) 355 mW
  • Max Output (600 Ohms) 88 mW
  • Output Impedance 0.54 ohms
  • Crosstalk (15 ohms) -65 dB
  • Channel Balance (50% volume) 0.6 dB
  • Battery Run Time 6-8 Hours

Dimensions

  • Case Dimensions (mm) 108.50 x 80.00 x 29.50
  • Case Dimensions (in) 4.27 x 3.15 x 1.16
  • Weight 11oz

Connectivity

  • Input 3.5mm or RCA 1.
  • Output 3.5mm or 6.35mm 2.
  • Power Battery or 14-20VAC

Configuration

  • Gain 2.5x and 6.5x 3.
  • Volume Potentiometer Taper Alps 15A
  • Batteries 2x9V LSD NiMH
  • 1. Custom input configurations are available
  • 2. Custom output configurations are available
  • 3. Custom gain configurations are available

Packaged Items

  • Genuine Objective2 Headphone Amplifier
  • 15VAC Power Adapter
  • 2x Tenergy 9V NiMH, Low-Self-Discharge Batteries
  • Rubber Feet

Instructions & Guides

JACK CONFIGURATIONS

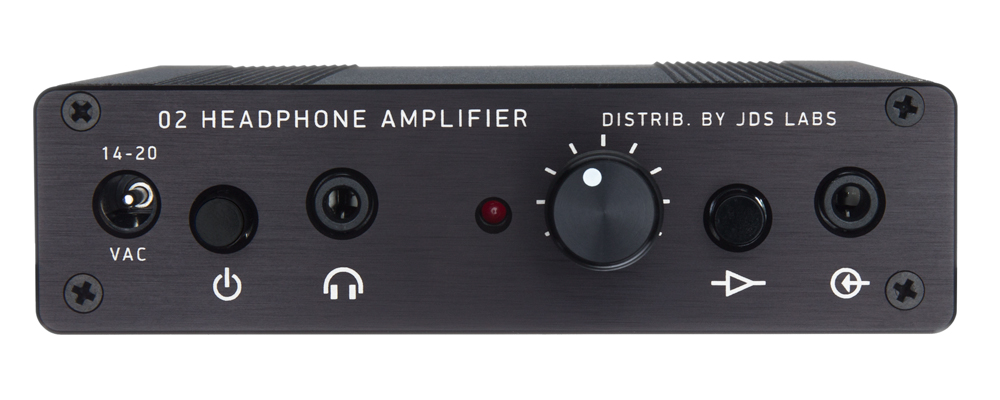

Black Edition: Default configuration, featuring front mounted 3.5mm (1/8") headphone jack, 3.5mm input jack, and AC power jack.

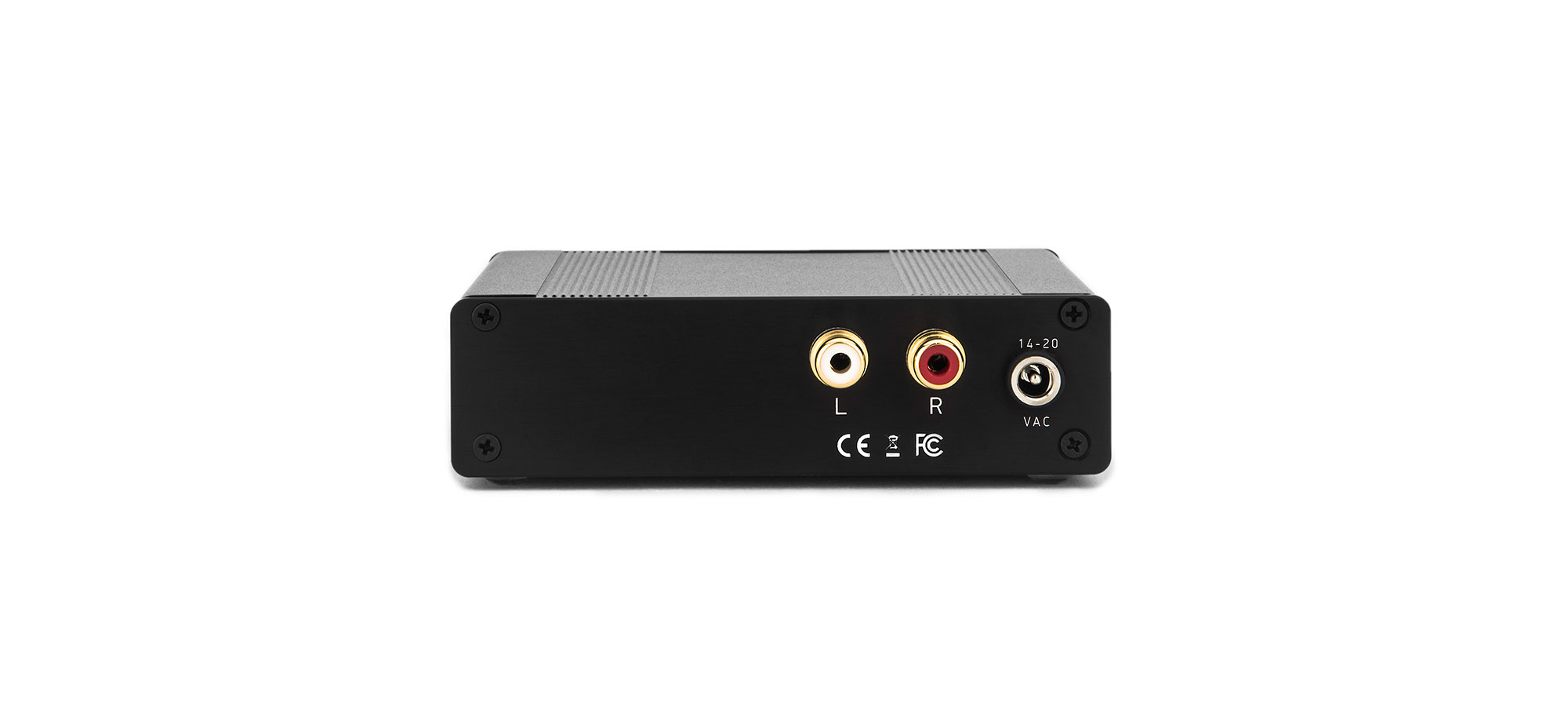

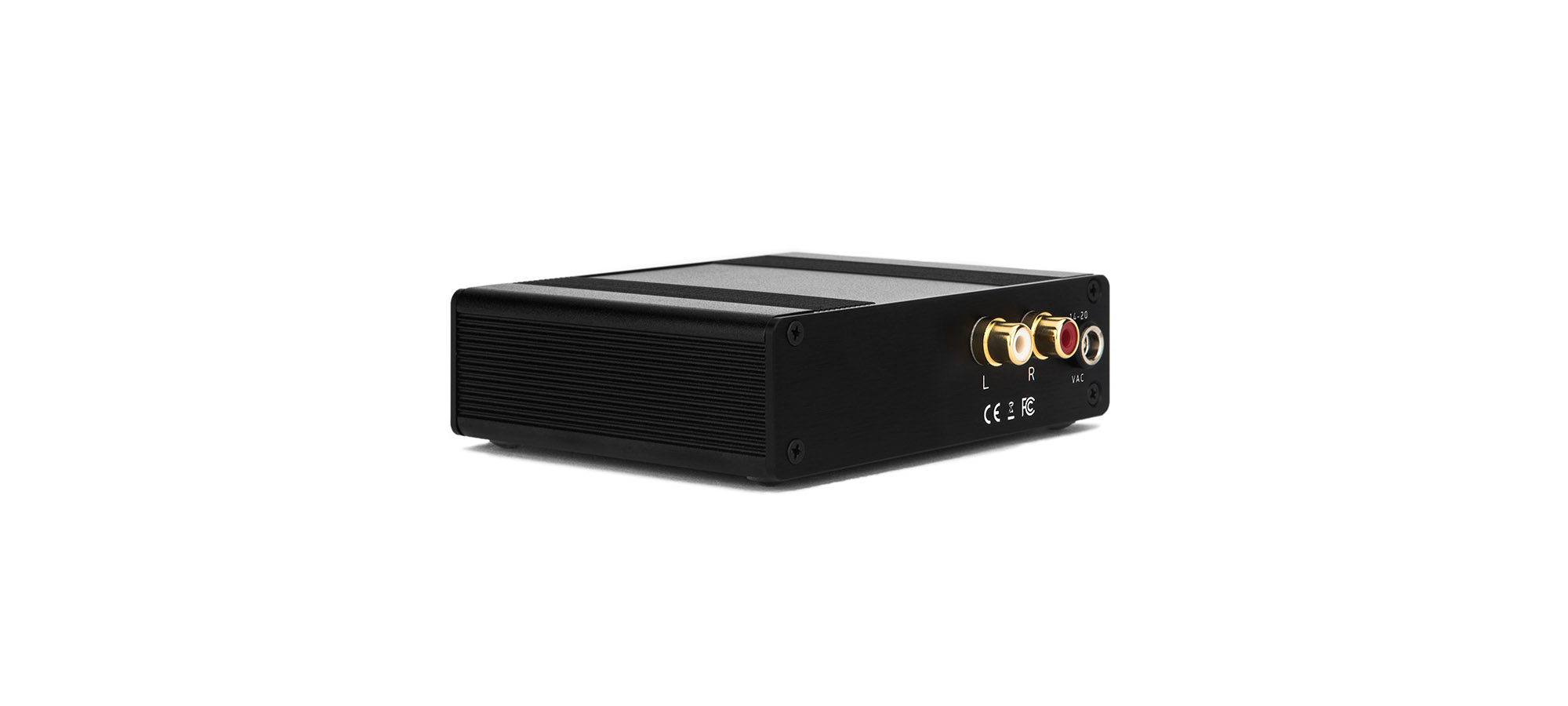

Customize: Choose a 3.5mm or 6.35mm (1/4") headphone jack, front or rear mounted AC power jack, 3.5mm or RCA analog input jack, and custom gain levels. Customized units ship within 1 business day, exclusively in black!

AC ADAPTERS

Objective2 ships with one (1) free 15VAC Power Adapter. Add Objective2 to your shopping cart to select a plug style. US plugs accept 100-120VAC input. EU, AU, and UK plugs accept 220-240VAC input.
