Atom Amp 2
$129
Backorder, Reserve Today! Ships May 1-3
- Covered by our 2-year transferable warranty
All Metal, More Power, More Fun
We built Atom Amp 2 for those who demand more. Atom Amp 2 is like Atom Amp+ on steroids. It's housed in an aluminum chassis with an easier to grip knob, featuring both 4.4mm and 6.35mm headphone jacks, failsafe DC protection, and octo-buffers pumping out more than twice the power of Atom Amp+. No noise. Front-mounted controls. Hand matched potentiometers. Custom engravable. Atom Amp 2, your new go-to headphone amp.
Stock Status: Electronics are in stock. The next batch of enclosures is nearly complete, scheduled to arrive at JDS Labs on April 30th. Atom Amp 2s will resume shipping around May 1st. By the way, Atom Amp+ ships immediately.
I honestly think that every audiophile should have a no-frills Atom 2 Amp on their desk. It’s simply that good.
For $129, you get an essentially flawless, state of the art headphone amplifier in the form of Atom 2. [. . .] Really, I can't think of anything negative to say even though I am good at that sort of thing!

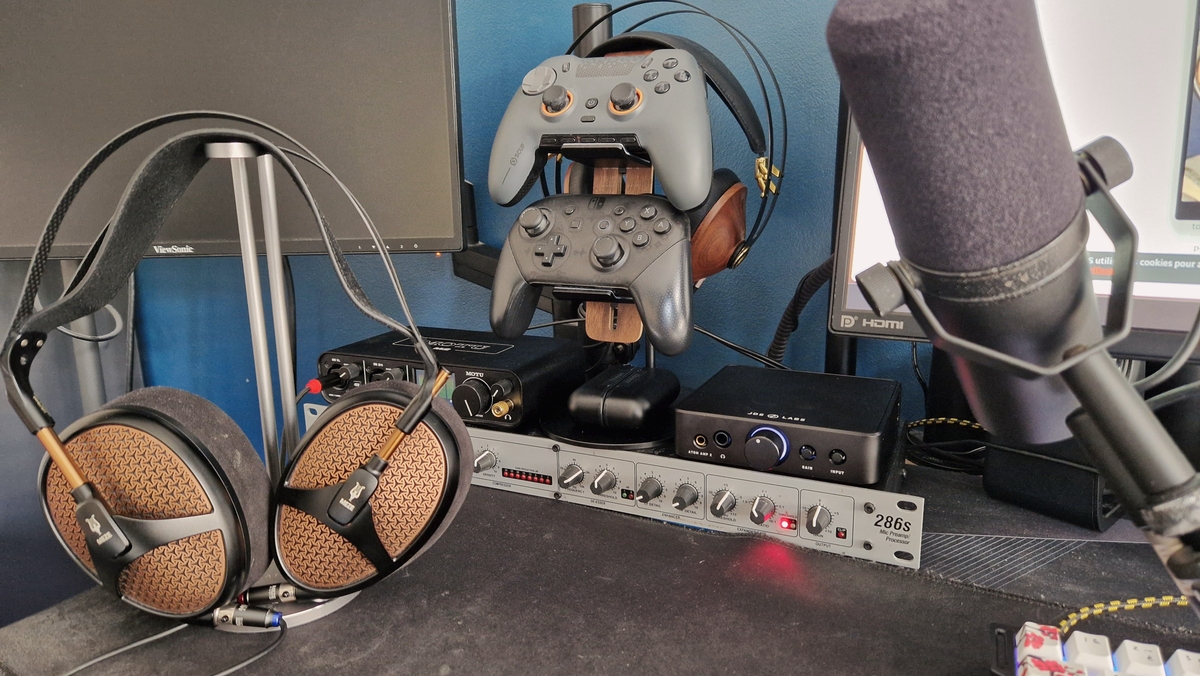

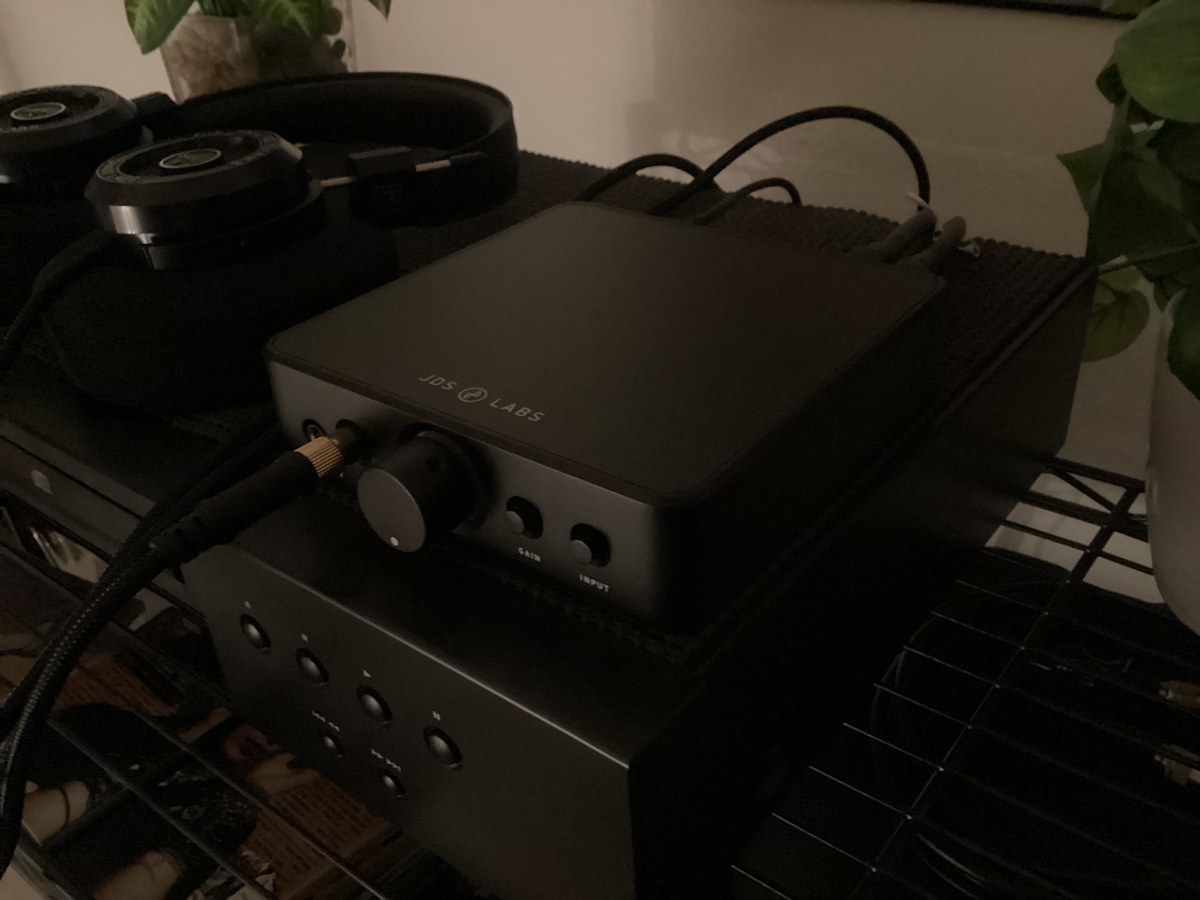

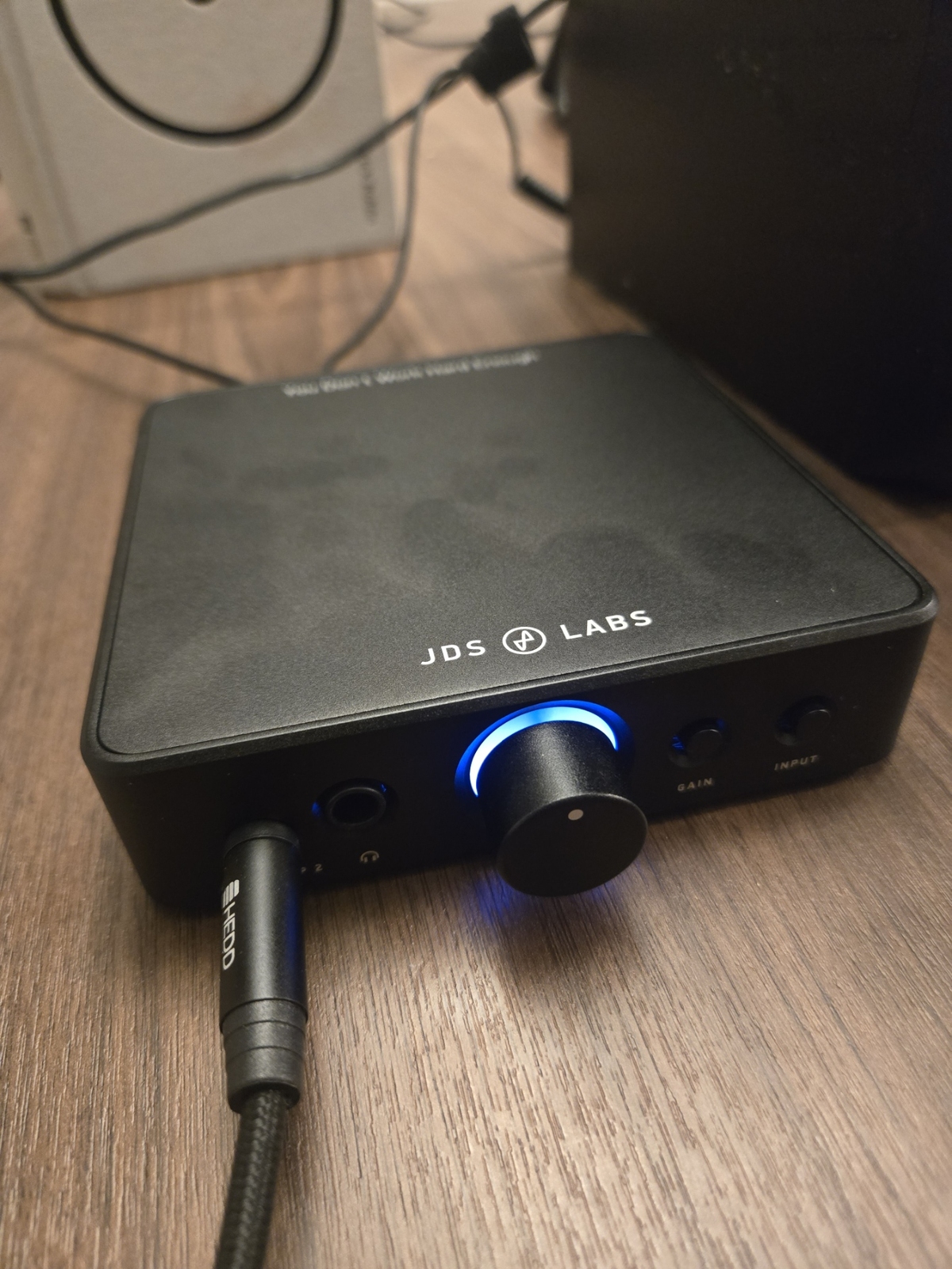

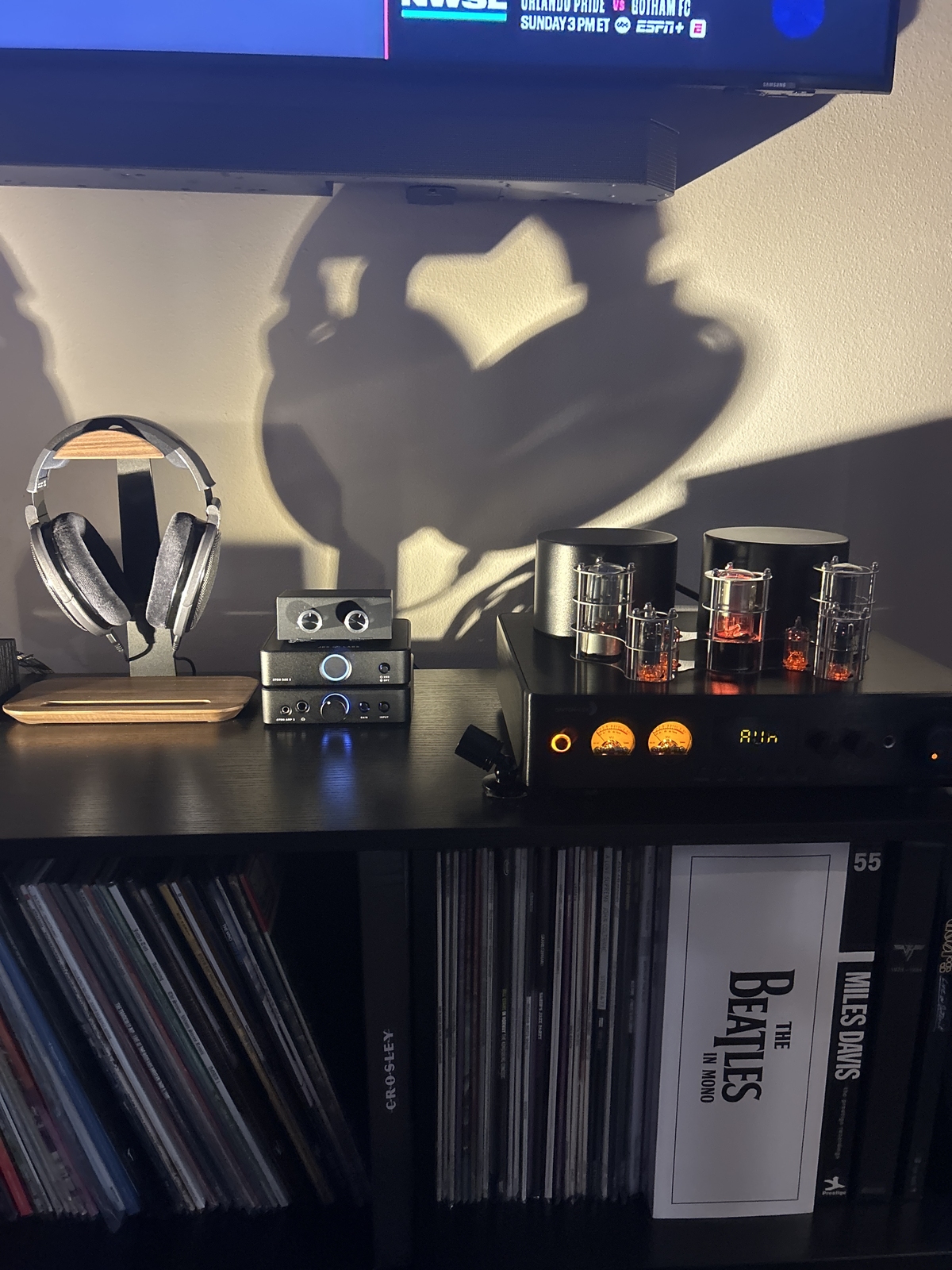

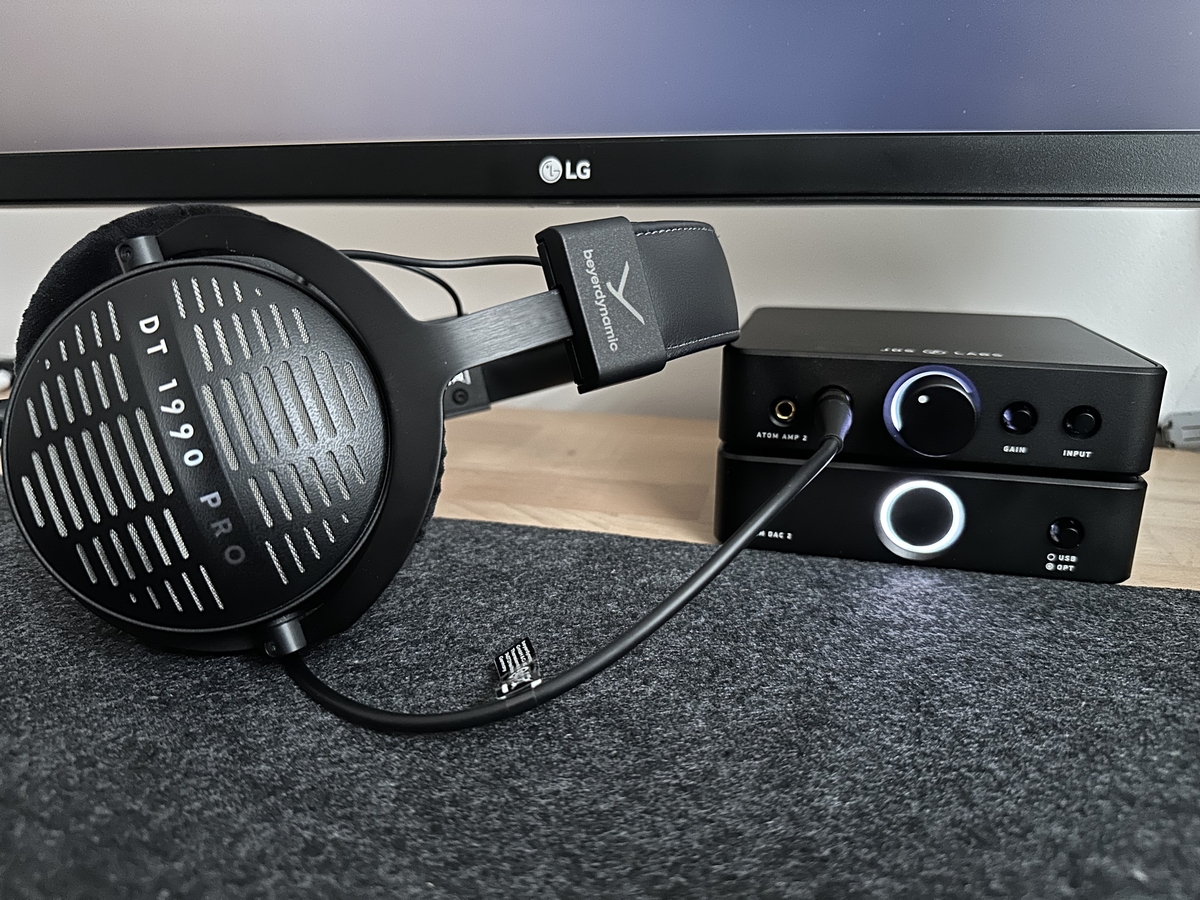

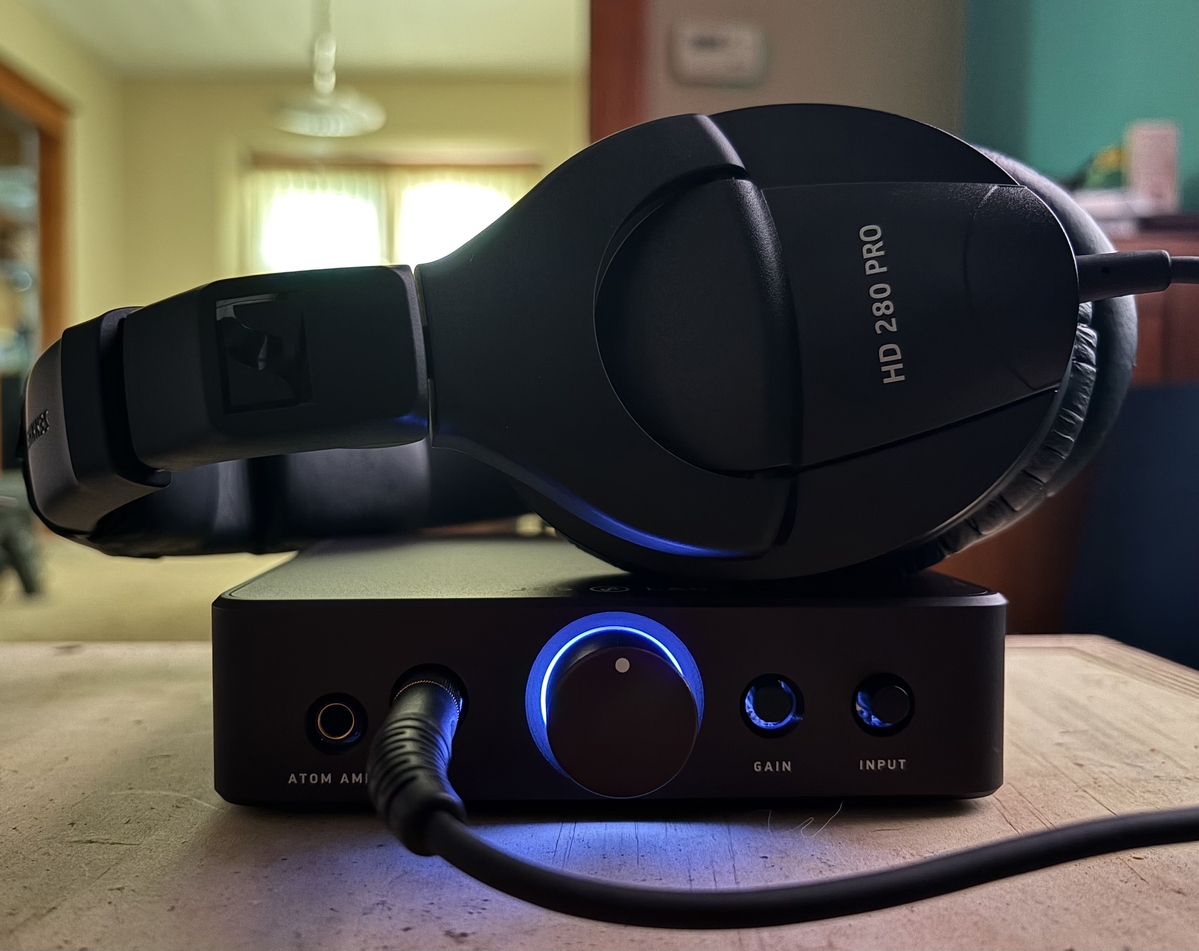

Gallery
Features
METAL ENCLOSURE

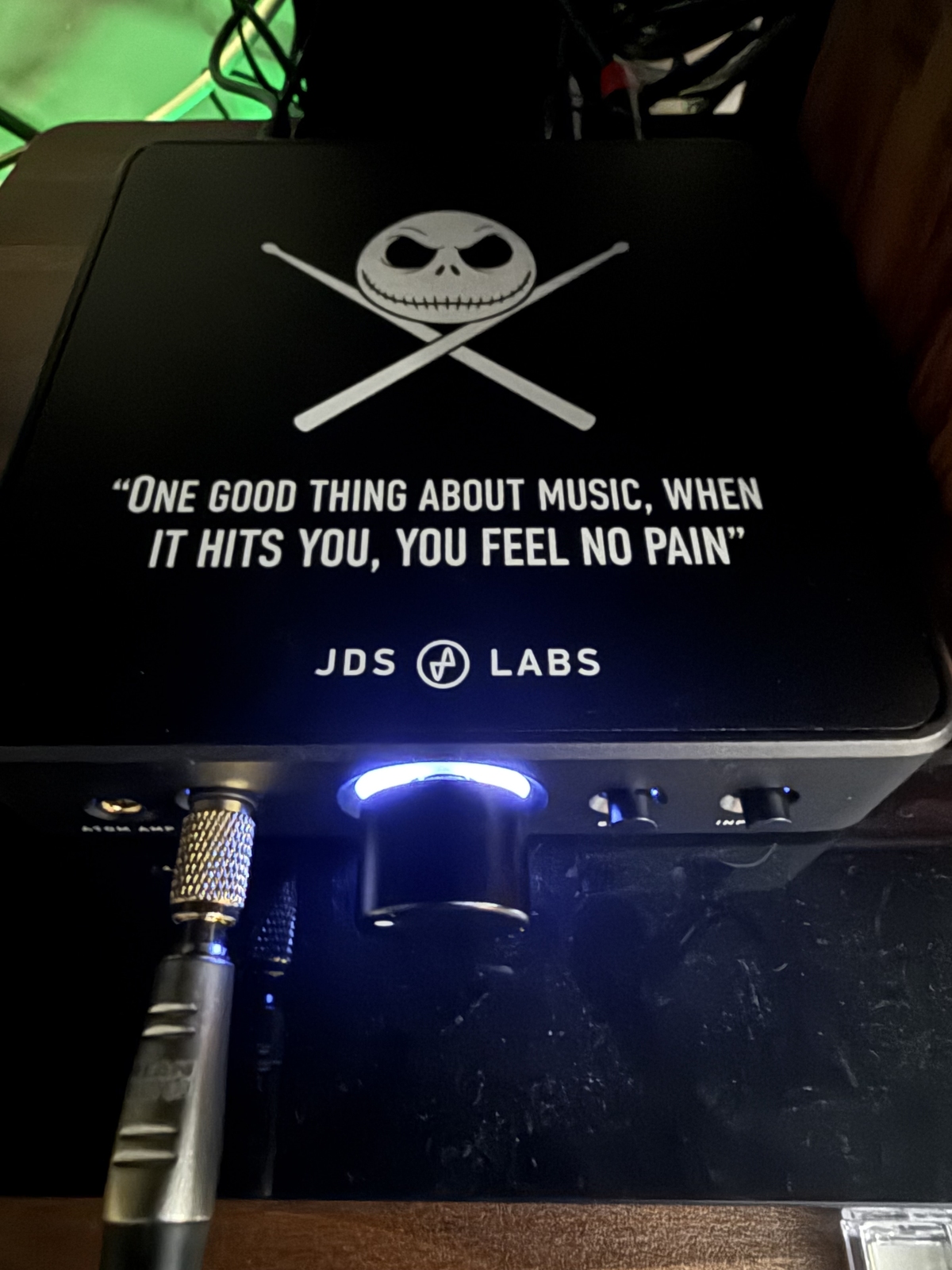

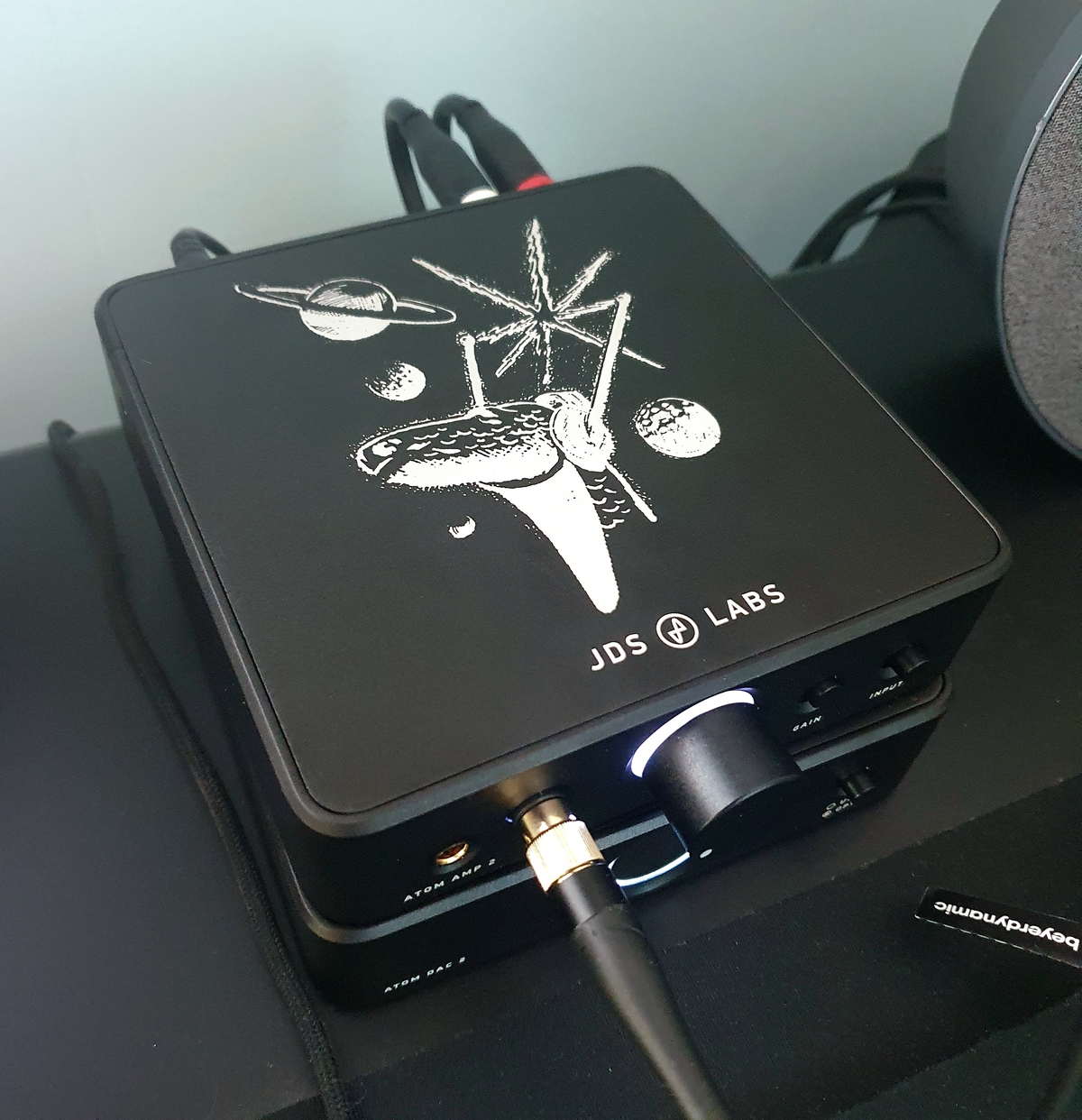

Atom Amp 2 is built in an aluminum chassis, with an easier to grip metal knob. The anodized surface is also eligible for free, custom engraving. Add text or artwork as you please in the shopping cart.
EVEN MORE POWER
While most headphone listening demands only milliwatts, Atom Amp 2's octo-buffers achieve over 2.6W per channel of absolutely clean, distortion-free power.
DUAL INPUTS, DUAL OUTPUTS
Atom Amp 2 consolidates the need for a separate amp and preamp. Connect up to two sources and select between 3.5mm and RCA input with the push of a button. On the front, you will find both 6.35mm and 4.4mm headphone outputs for your convenience.
PREAMP OUTPUTS
Unplug your headphones from the 1/4in jack and Atom Amp 2's knob adjusts volume of its RCA preamp outputs, so that you can control volume of your powered speakers.
DUAL GAIN
Low gain of 1.0x with hand matched potentiometers are well suited to driving efficient IEMs. High gain easily powers demanding full size sets when paired with the matching 2VRMS Atom DAC 2.
TOP PERFORMANCE
Atom Amp 2 is beyond transparent, with the lowest noise floor of any Atom Amp to date thanks its 4-layer, star grounded layout and octo-buffers.
Specifications
Performance
- Frequency Response, 20Hz-20kHz +/- 0.01dB
- SINAD @ 2VRMS, 1kHz 120 dB
- SINAD @ 50mV, 1kHz 93 dB
- SNR (20-20kHz) 124 dB
- IMD SMPTE -97 dB
- Noise (20-20kHz) 1.33 μV
- Crosstalk @ 10kHz (RCA Out) -101 dB
- Input Impedance 10k Ω
- Output Impedance 0.7 Ω
- Channel Balance < 0.6 dB
- Max Continuous Power @ 600Ω 143 mW (9.28VRMS)
- Max Continuous Power @ 300Ω 286 mW (9.27VRMS)
- Max Continuous Power @ 150Ω 570 mW (9.25VRMS)
- Max Continuous Power @ 32Ω 2.65 Watts (9.22VRMS = 26Vpp)
Dimensions
- Case Dimensions (including knob) 145 x 131 x 34 mm (5.7 x 5.1 x 1.3 in)
- Weight 1 lb (454 g)
Connectivity
- Headphone Outputs 4.4mm and 6.35mm (1/4")
- Analog Inputs RCA and 3.5mm
- Preamp Output RCA
Configuration
- Dual Gain 1.0 and 4.7x
- Volume Potentiometer Taper 15A, Hand Matched Gangs
Packaged Items
- Atom Amp 2
- 16VAC Power Adapter
