Objective2+ODAC Combo Rev B


This product has been discontinued. You might be interested in Element III MK2.

Element III MK2

$449.00

  • Covered by our 2-year transferable warranty

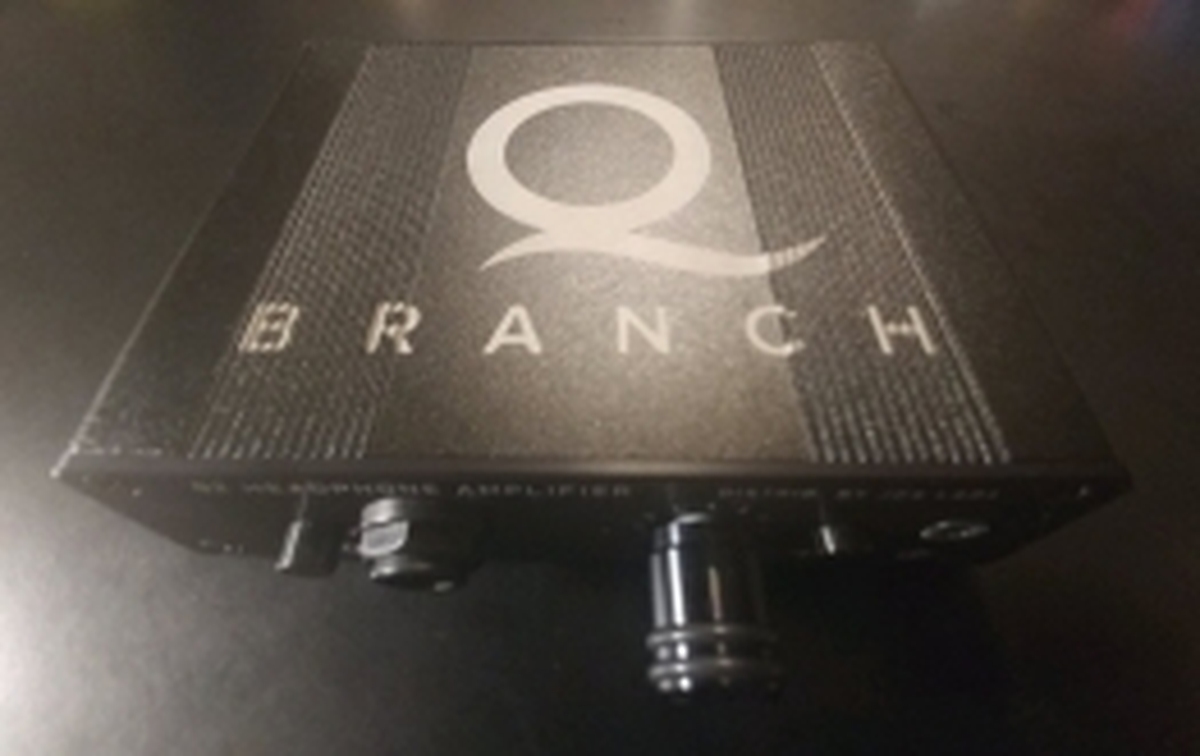

  • Custom model pictured, please read all options!

DESIGNED FOR RAW PERFORMANCE

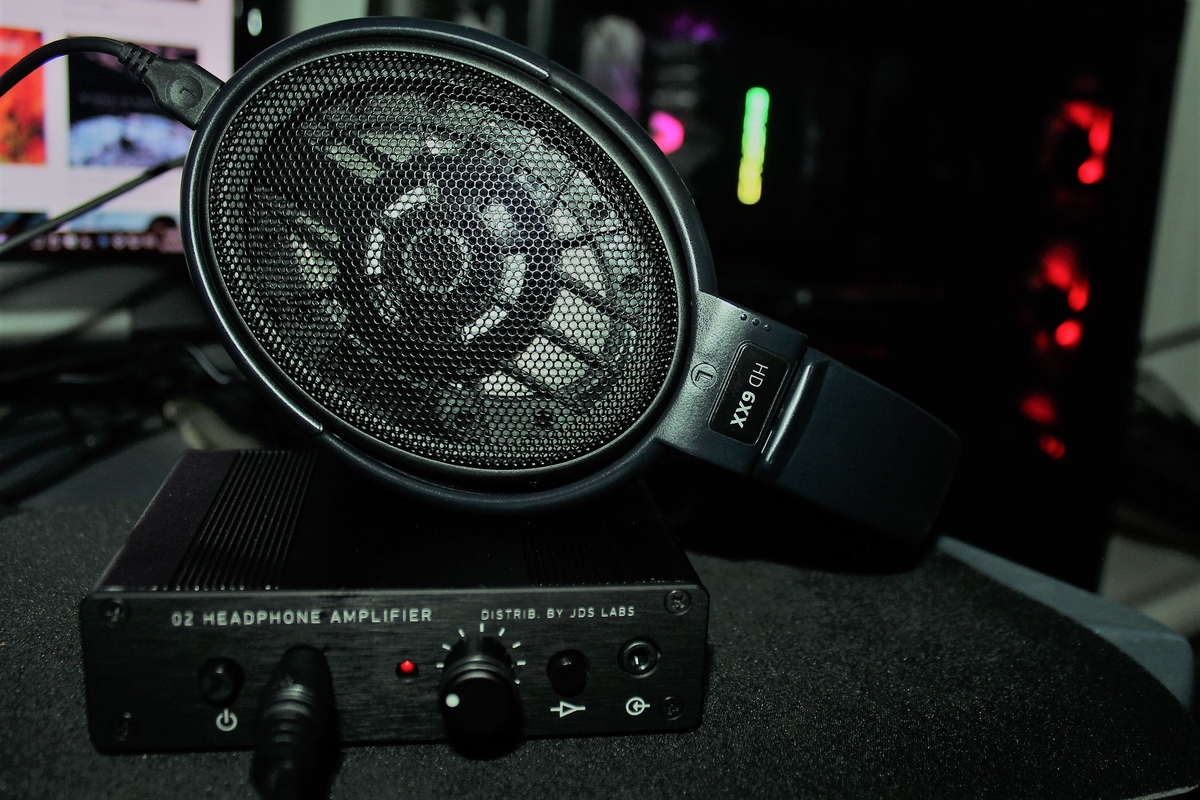

Objective2+ODAC is an Objective2 headphone amp with integrated ObjectiveDAC. This high performance amp+DAC combo ships fully assembled, tested, and ready to use. Includes USB cable.

Features

REFERENCE GRADE SOUND

LOW OUTPUT IMPEDANCE

HIGH POWER

LOW JITTER

24-BIT RESOLUTION

NATURAL FREQUENCY RESPONSE

Specifications

Performance

  • Frequency Response 20Hz-20kHz +/-0.1 dB
  • THD 1 Khz 150 Ohms 0.0016%
  • IMD CCIF 15 Ohms 0.001%
  • IMD SMPTE 0.002%
  • Noise, A-Weighted -105 dBu
  • Max Output (33 Ohms) 613 mW
  • Max Output (150 Ohms) 355 mW
  • Max Output (600 Ohms) 88 mW
  • Output Impedance 0.54 ohms
  • Crosstalk (15 ohms) -65 dB
  • Channel Balance (50% volume) 0.6 dB

DAC Performance

  • Freq. Response 20Hz-20kHz +/- 0.04dB
  • THD+N 100 hz -0.15 dBFS 0.0028%
  • THD+N 20 hz -0.15 dBFS 0.0015%
  • THD+N 10 Khz -0.15 dBFS 0.0024%
  • IMD CCIF 19/20 Khz -6.03 dBFS 0.0015%
  • IMD SMPTE -6.03 dBFS 0.0015%
  • Noise A-Weighted dBu 24/96 -103 dBu
  • Dynamic Range (A-Weighted) > 112 dB
  • Linearity Error -90 dBFS 24/96 -0.08 dB
  • Crosstalk -10 dBFS 100K 3.5mm Crosstalk -10 dBFS 100K 3.5mm
  • USB Jitter Components 11025Hz -112.3dB
  • Maximum Output Line Out 100K 2.1 VRMS
  • Distortion < 0.005%

Dimensions

  • Case Dimensions (mm) 108.50 x 80.00 x 29.50
  • Case Dimensions (in) 4.27 x 3.15 x 1.16
  • Weight 11oz

Data Support

  • Audio Formats 16/44, 16/48, 16/88.2, 16/96, 24/44, 24/48, 24/96
  • Interface USB, Audio Class
  • Native Driver OS Support Windows XP & Later, OS X x86, iOS, PS4, Linux

Connectivity

  • Analog Output 3.5mm or 6.35mm*
  • Analog Input 3.5mm
  • Digital Input Mini-USB
  • DAC Line Output 3.5mm or RCA**
  • Power Input 14-20VAC

Packaged Items

  • Objective2+ODAC RevB
  • 15VAC Power Adapter
  • 3ft Mini-USB cable
  • Rubber Feet

Drivers

  • ODAC - Optional ASIO Drivers - v2.4.0.1

    Please also note that ASIO drivers should only be installed when required by a specific application, such as professional mixing tools. Microsoft's Windows USB Audio Class 1 drivers are preferred!

    ATTENTION: SaviAudio drivers prior to v2.8.x require installation of a self-signed certificate. Archived drivers are available here.

Instructions & Guides

JACK CONFIGURATIONS

Black and Silver Edition: Default configuration, featuring front mounted 3.5mm (1/8") headphone jack, 3.5mm input jack, and AC power jack. Rear mounted digital USB input.


Custom Edition: Customize your Objective2+ODAC. Choose a 3.5mm or 6.35mm (1/4") headphone jack, front or rear mounted AC power jack, and optional 3.5mm or RCA DAC line-output. Customized units ship within 1 business day, exclusively in black!

AC ADAPTERS

Add Objective2+ODAC to your shopping cart to select your free AC adapter. Please note that Objective2+ODAC is an AC powered device and does not contain batteries. Additional 15VAC power adapters may be purchased separately.
